100 GPH HP IN-LINE FUEL PUMP

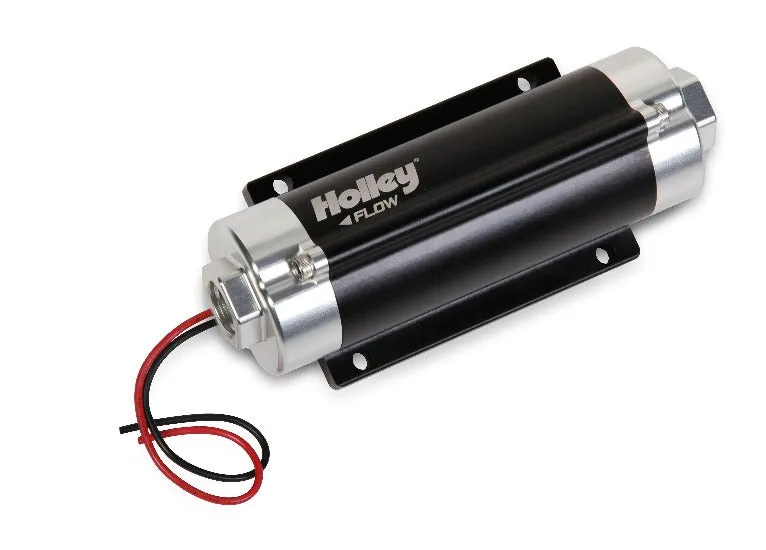

Name: Holley HP In-Line 100 GPH Billet EFI Fuel Pump ~ Supports up to 900 EFI or 1050 Carb HP
SKU: 418657

Carb or EFI Applications Supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas*, Race gas, Diesel or E85

Part # 12-890

Holleys HP™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carburetted or fuel injected race car, off-road truck, or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000 mile durability in a cost-effective, attractive package. HP™ fuel pumps are Race gas, E-85, and diesel compatible and can be used in racing applications with 18.5 volt charging systems up to 80 psi.

Features:

Billet aluminium construction for durability & good looks
-8 an o-ring inlet/outlet for high flow and superior sealing
Excellent for use with carburetted or EFI applications
Fully submersible in-tank for custom applications, space savings and less plumbing
Compatible with 12v to 18.5v systems for street or race use
Compact (7.5” long x 3” wide x 2.75” tall) for easy installation on frame rails or other tight areas
Proven durability beyond 3,000 hours in gasoline or diesel fuels
Weighs only 3.1 lbs.
Current draw at 43 psi and 13.5 vdc is 8.6 amps
Not designed for use on aircraft of any type.

TECH RESOURCES

Instructions for Part# 12-890

Holley Fuel Systems Chart

*Pump gas compatible for intermittent or under 90 degree ambient temperature use

Pump gas use recommendations:

• This pump is compatible with pump gas, but is not recommended for street driven vehicles where the ambient temperature is regularly above 90 degrees

• For street driven vehicles in high temps with pump gas, Holley recommends part numbers 12-600 or 12-800 for optimum hot fuel handling

• Proper fuel system engineering is critical for maximum performance. Please see Holley Fuel System Chart for information about proper installation of your fuel system.

Will work with E-85 and Diesel!

These pumps do not have an internal bypass. A bypass style regulator and return line are required.

NOT FOR USE WITH METHANOL!

This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981508ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985008ERL.

SPECS

Application	Universal
Brand	Holley
Forced Induction HP@43PSI	700
Forced Induction HP@60PSI	600
Forced Induction HP@8PSI	800
Free Flow GPH	105
Fuel System	Carburetted
	EFI
Fuel Type	Diesel
	E85
	Gasoline
GPH@43PSI	76
GPH@60PSI	70
GPH@8PSI	100
Inlet Size	8 AN O-Ring - 3/4-16 SAE
LPH@43PSI	287
LPH@60PSI	265
LPH@8PSI	363
Material	Aluminium
Naturally Aspirated HP@43PSI	900
Naturally Aspirated HP@60PSI	800
Naturally Aspirated HP@8PSI	1050
Outlet Size	8 AN O-Ring - 3/4-16 SAE
Product Type	Fuel Pump
Pump Body Colour	Black Anodised
UPC	090127670538
Part Number	12-890
