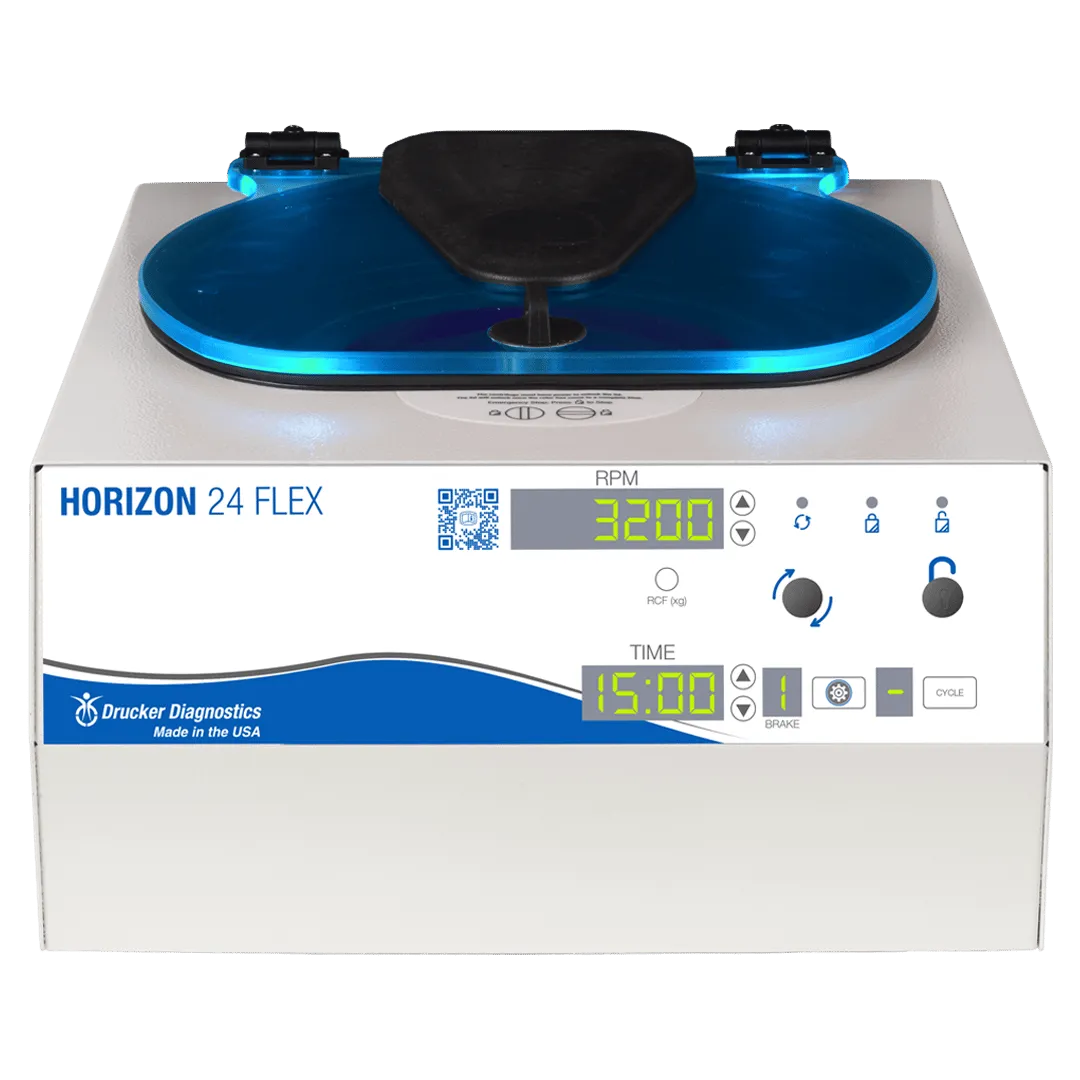

The HORIZON 24 Flex centrifuge is the lab's essential workhorse, designed for flexibility, ease of use, and handling heavy workloads. It processes all blood and urine tubes up to 50 mL right out of the box. The digital display allows easy programming and saving of up to ten custom settings or choosing from three carefully selected presets. The LED lid lighting indicates the centrifuge's status—off when ready, on when running, and flashing when done—preventing forgotten tubes and preserving sample quality.
Features
- Max Capacity - 24 (up to 16 x 100 mm or 10 mL), 12 (up to 16 x 125 mm or 15 mL), 6 (up to 50 mL)
- Digital Display – Clearly see your custom prarmeters and the time left in each cycle
- Fully Programmable – Save and recall 10 easily customizable cycle settings, or choose from three presets for chemistry, coag, and urine
- 2-Stage Horizontal Rotor – Drucker Diagnostics’ patented swing-out horizontal rotor design produces ideal horizontally separated samples
- Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
- Intuitive Lid Lighting – Lid lights flash at the end of each cycle and continue flashing until the lid is opened
- Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning
- Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
- Reinforced Guard Bowl – Provides maximum safety and durability
- Brushless DC Motor – Years of operation with no routine maintenance
- Quiet Operation – Enjoy a sound level of just 64 dBA
- Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards
Specifications
- Dimensions (W x D x H) – 15 x 17 x 9 in (38.1 x 43.2 x 22.9 cm)
- Weight – 39 lbs. (17 kg)
- Max. Acceleration Time – 20 Seconds
- Max. Deceleration Time – 20 Seconds
- Factory Setting Range – .5 to 99 Minutes (± 2%)
- Voltage – 95 to 253 VAC
- Frequency – 50/60 Hz
- Max. Power Requirements – 220 Watts
Preset Cycles
Preset 1: 10 min / 3300 RPM / 1800 xg
Preset 2: 15 min / 3000 RPM / 1500 xg
Preset 3: 5 min / 1700 RPM / 500 xg
Warranty
2 years (lifetime on rotor)
