The HORIZON 24 routine centrifuge offers unparalleled versatility, large capacity, and user-friendly operation. Capable of spinning tubes up to 75-100 mm and 50 mL, its simple set-and-lock controls ensure maximum repeatability. Choose from three preset cycles at the press of a button or program custom settings tailored to your lab's needs. The lid lights provide clear visibility of the centrifuge's status throughout the cycle. Each unit comes ready to use, complete with rotor, tube holders, and a 2-year warranty, all at an affordable price.
Features
- Max Capacity – 24 (up to 16 x 100 mm or 10 mL), 12 (up to 16 x 125 mm or 15 mL), 6 (up to 50 mL)
- Factory Presets – Three (3) easily selectable preset cycles (default or custom) based on CLSI guidelines and tube manufacturer IFU
- Set and Lock Controls – Select a preset cycle, or lock to a single cycle with the two-button interface

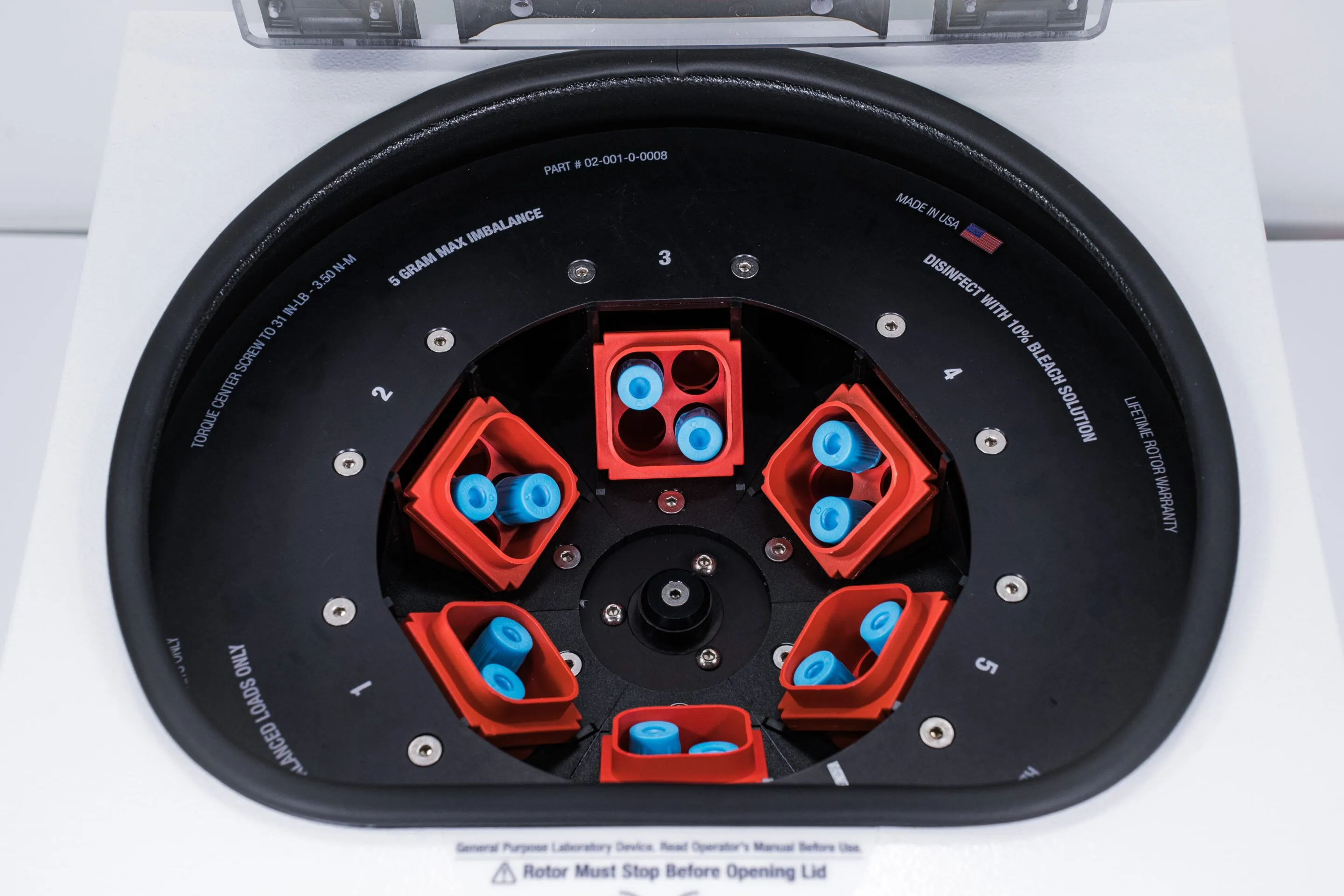

- 2-Stage Horizontal Rotor – Drucker Diagnostics’ patented swing-out horizontal rotor design produces ideal horizontally separated samples
- Intuitive Lid Lighting – Lid lights flash at the end of each cycle and continue flashing until the lid is opened
- Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning
- Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
- Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
- Brushless DC Motor – Years of operation with no routine maintenance
- Reinforced Guard Bowl – Provides maximum safety and durability
- Quiet Operation – Enjoy a sound level of just 59 dBA
- Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards
Specifications
- Dimensions (W x D x H) – 15 x 17 x 9 in (38.1 x 43.2 x 22.9 cm)
- Weight – 39 lbs. (17 kg)
- Max. Acceleration Time – 20 Seconds
- Max. Deceleration Time – 20 Seconds
- Factory Setting Range – 1 to 30 Minutes (± 1%)
- Voltage – 95 to 253 VAC
- Frequency – 50/60 Hz
- Max. Power Requirements – 220 Watt
Preset Cycles
Preset 1: 10 min / 3300 RPM / 1800 xg
Preset 2: 15 min / 3000 RPM / 1500 xg
Preset 3: 5 min / 1700 RPM / 500 xg
Warranty
2 years (lifetime on rotor)
