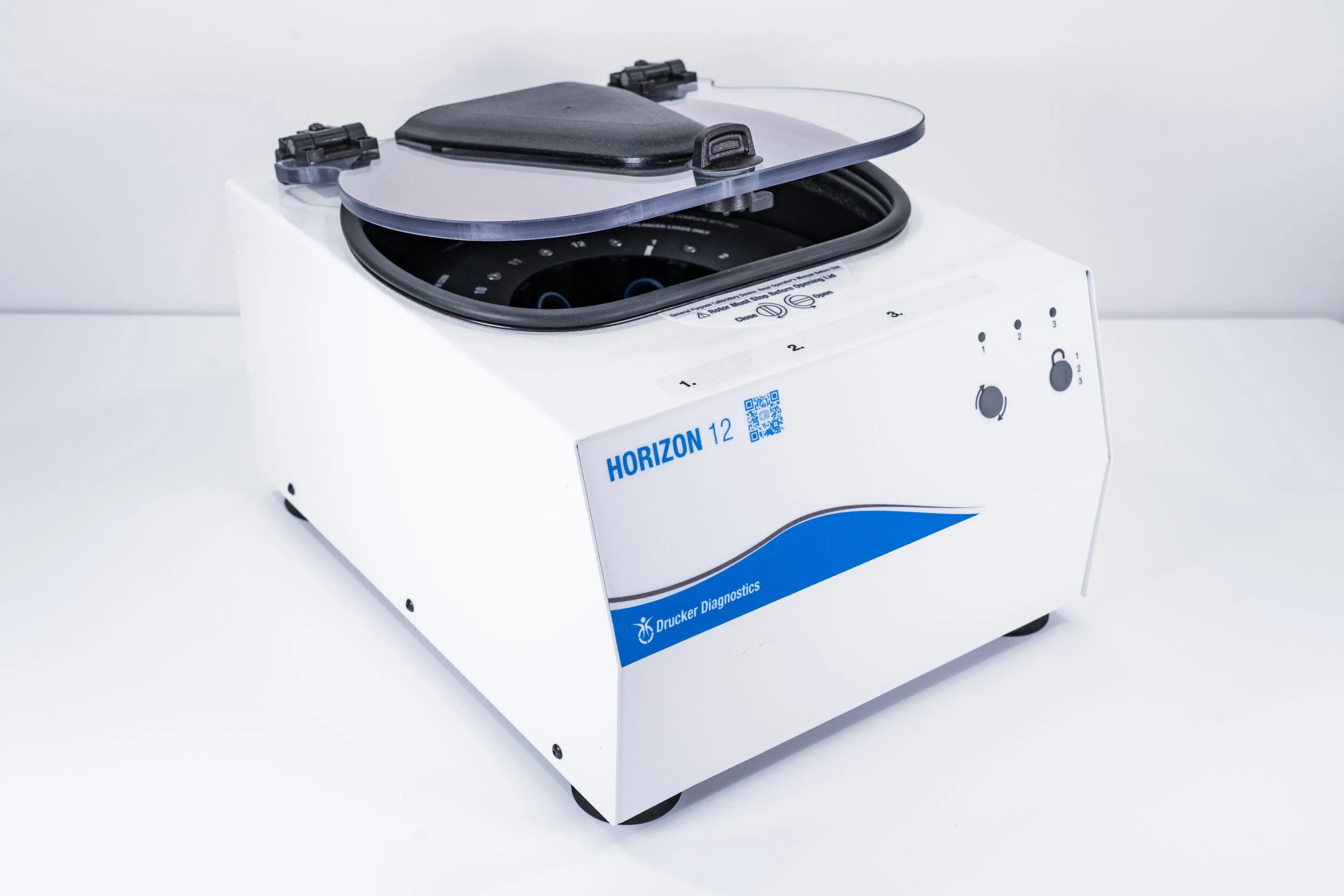

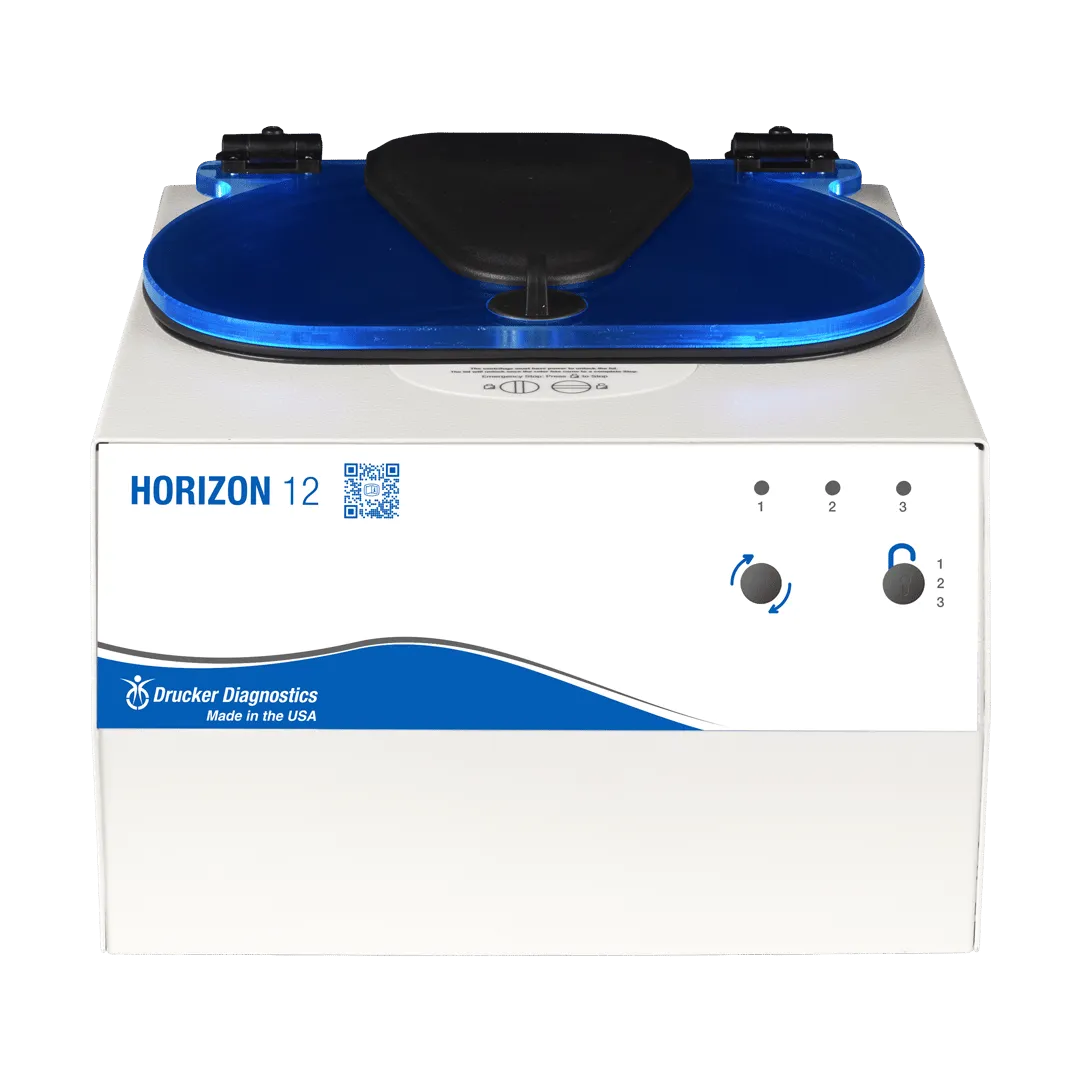

The HORIZON 12 routine centrifuge optimizes the processing of 75-100 mm (3-10 mL) blood and urine tubes, ensuring superior outcomes for your patients. Select from three preset cycles or lock a single cycle to prevent accidental adjustments. The LED lid lighting enhances workflow by indicating sample status: off when ready, on when running, and flashing when complete. Experience the HORIZON 12’s quiet performance, maintenance-free durability, and exceptional efficiency.
Features
- Max Capacity – 12 (up to 16 x 100 mm or 10 mL)
- Factory Presets – Three (3) easily selectable preset cycles (default or custom) based on CLSI guidelines and tube manufacturer IFU
- Set and Lock Controls – Select a preset cycle, or lock to a single cycle with the two-button interface
- Intuitive Lid Lighting – Lid lights flash at the end of each cycle and continue flashing until the lid is opened
- Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning

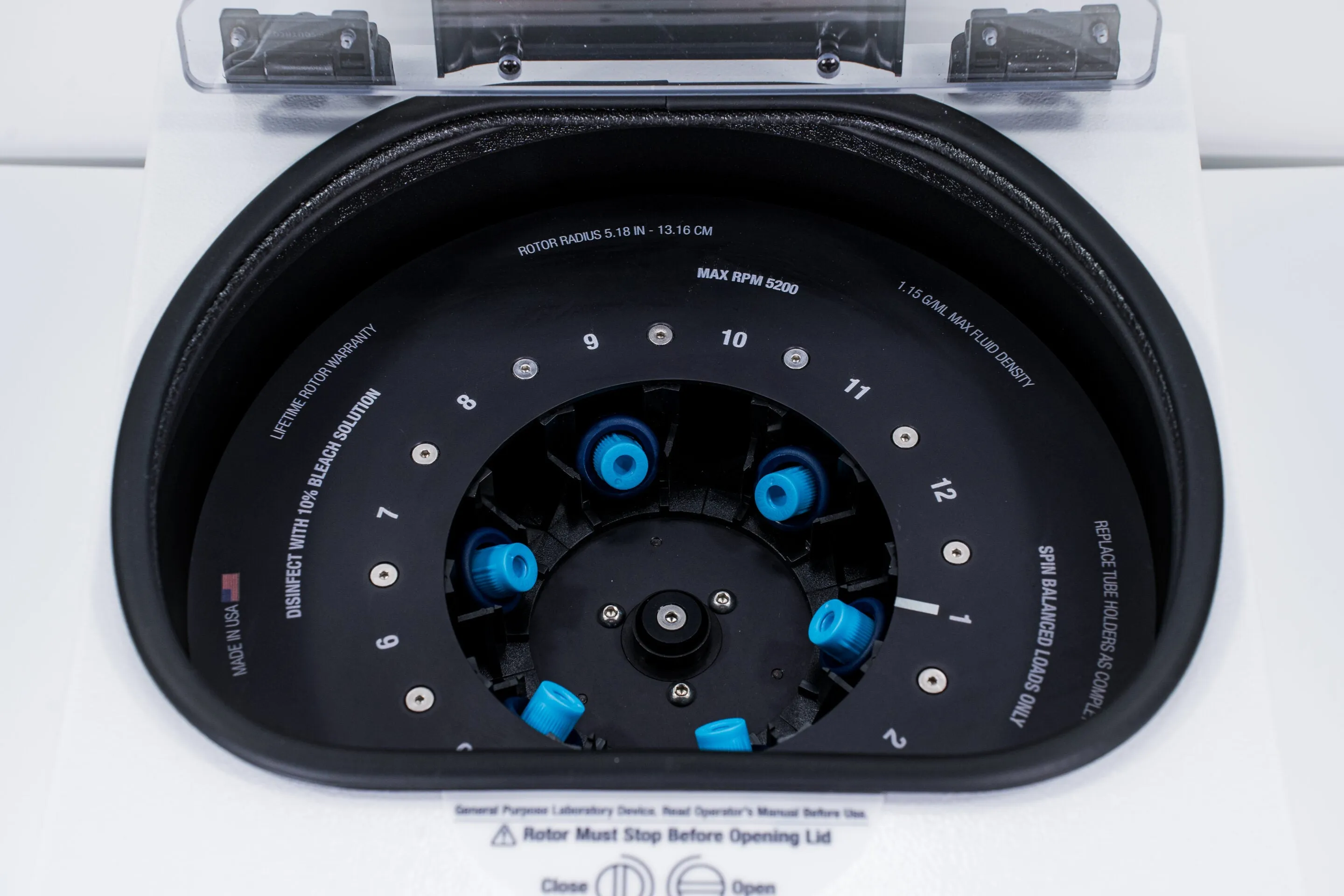

- 2-Stage Horizontal Rotor – Drucker Diagnostics’ patented swing-out horizontal rotor design produces ideal horizontally separated samples
- Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
- Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
- Brushless DC Motor – Years of operation with no routine maintenance
- Reinforced Guard Bowl – Provides maximum safety and durability
- Quiet Operation – Enjoy a sound level of just 56 dBA
- Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards
Specifications
- Dimensions (W x D x H) – 13 x 15 x 9 in (33 x 38.1 x 22.9 cm)
- Weight – 30 lbs. (13.7 kg)
- Max. Acceleration Time – 20 Seconds
- Max. Deceleration Time – 20 Seconds
- Factory Setting Range – 1 to 30 Minutes (± 1%)
- Voltage – 95 to 253 VAC
- Frequency – 50/60 Hz
- Max. Power Requirements – 220 Watts
Preset Cycles
Preset 1: 10 min / 3500 RPM / 1800 xg
Preset 2: 15 min / 3200 RPM / 1500 xg
Preset 3: 5 min / 1800 RPM / 500 xg
Warranty
2 years (lifetime on rotor)
